| Application | Food,beverage,wine,pharmaceutical and chemical industries |

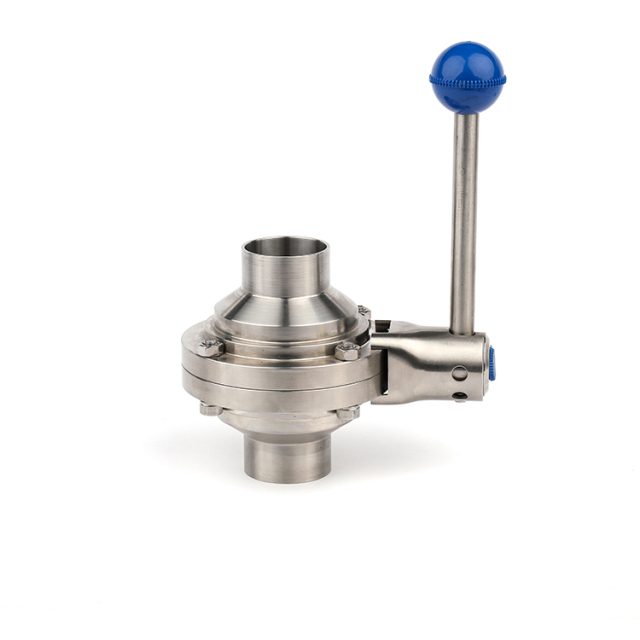

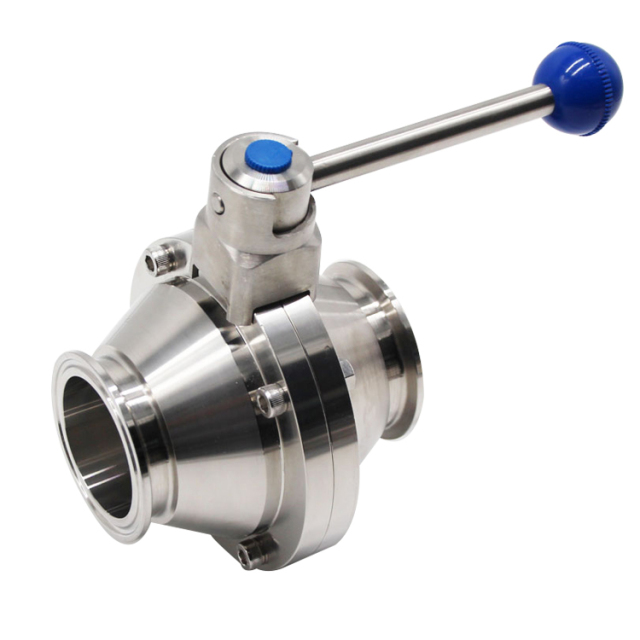

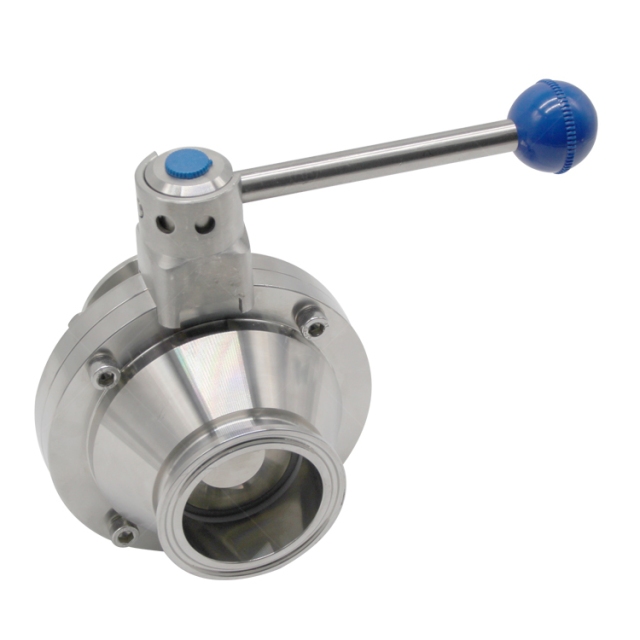

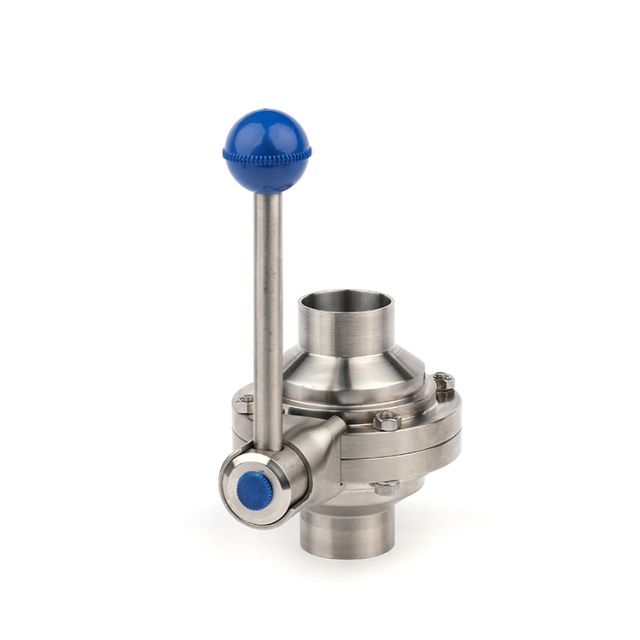

| Features | Automatically or manually butterfly valve, it can be good deal with viscous or medium with particulate. Free maintenance; Portable and compact; Small torque-moment; Valve body can be replaced in any connections,the length will not change; Handle can be installed on the side of valve body, no matter of the fluid direction Can match CIP cleaning mouth; |
| Control system | Electrical or pneumatic actuators |
| Material | Stainless steel 304/316L, the part contacted with medium is SS304/316L,other parts SS304 |
| Working temperature | EPDM(-40+120℃），PTFE(-40+130℃），FP(-40+180℃） |
| Working pressure | 0-10bar |
| Seal material | EPDM,VMQ,FPM |
| Connecting | Clamp,weld,thread,flange |
| Size | 1’’-4’’ |
| Standard | 3A,DIN, SMS, IDF, RJT, BPE, ISO |
